AMC13_T1_fakeAMC Entity Reference

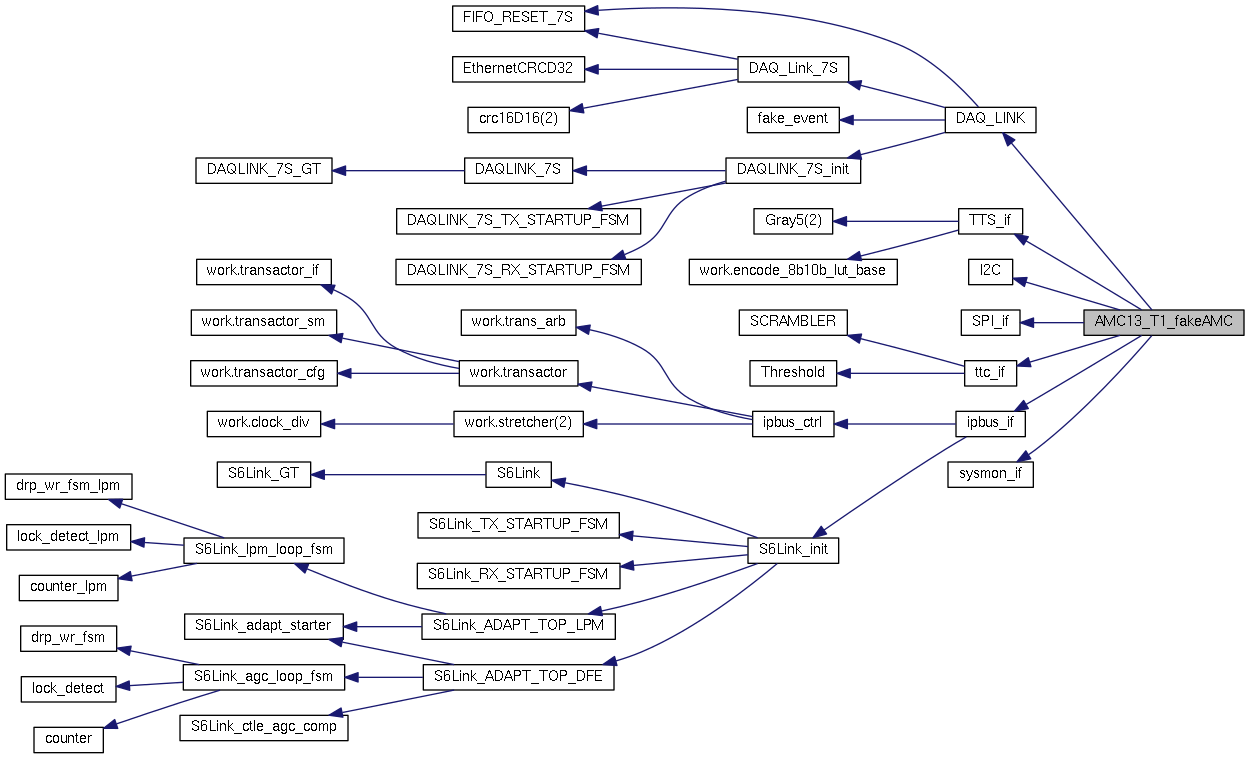

Inheritance diagram for AMC13_T1_fakeAMC:

List of all members.

Entities
Behavioral	architecture

Libraries
UNISIM
UNIMACRO

Use Clauses
ipbus	Package <ipbus>
amc13_pack	Package <amc13_pack>
VComponents
vcomponents

Ports
VAUXP	in STD_LOGIC_VECTOR ( 12 downto 0 )
VAUXN	in STD_LOGIC_VECTOR ( 12 downto 0 )
CLK_SCL	out STD_LOGIC
CLK_SDA	inout STD_LOGIC
SFP_SCL	out STD_LOGIC_VECTOR ( 3 downto 0 )
SFP_SDA	inout STD_LOGIC_VECTOR ( 3 downto 0 )
SFP_LOS	in STD_LOGIC_VECTOR ( 2 downto 0 )
SFP_ABS	in STD_LOGIC_VECTOR ( 3 downto 0 )
TxFault	in STD_LOGIC_VECTOR ( 3 downto 0 )
TxDisable	out STD_LOGIC_VECTOR ( 3 downto 0 )
DIV4	out STD_LOGIC
DIV_nRST	out STD_LOGIC
CDRclk_p	in STD_LOGIC
CDRclk_n	in STD_LOGIC
CDRdata_p	in STD_LOGIC
CDRdata_n	in STD_LOGIC
TTCdata_p	out STD_LOGIC
TTCdata_n	out STD_LOGIC
TTCclk_p	in STD_LOGIC
TTCclk_n	in STD_LOGIC
TTC_LOS	in STD_LOGIC
TTC_LOL	in STD_LOGIC
TTS_out_p	out STD_LOGIC
TTS_out_n	out STD_LOGIC
SPI_SCK	in STD_LOGIC
SPI_CS_b	in STD_LOGIC
SPI_MOSI	in STD_LOGIC
SPI_MISO	out STD_LOGIC
AMC_REFCLK_N	in STD_LOGIC
AMC_REFCLK_P	in STD_LOGIC
AMC_RXN	in STD_LOGIC
AMC_RXP	in STD_LOGIC
AMC_TXN	out STD_LOGIC
AMC_TXP	out STD_LOGIC
S6LINK_RXN	in STD_LOGIC
S6LINK_RXP	in STD_LOGIC
S6LINK_TXN	out STD_LOGIC
S6LINK_TXP	out STD_LOGIC
S2V_p	in STD_LOGIC
S2V_n	in STD_LOGIC
V2S_p	out STD_LOGIC
V2S_n	out STD_LOGIC
GbE_REFCLK_N	in STD_LOGIC
GbE_REFCLK_P	in STD_LOGIC

---

Detailed Description

Definition at line 39 of file AMC13_T1_fakeAMC.vhd.

---

The documentation for this class was generated from the following file:

• /home/dan/work/CMS/firmware/trunk/src/top/AMC13_T1_fakeAMC.vhd
